200 series Steam oven 200 Series Full glass door in Gaggenau Anthracite Width 60 cm Right-hinged Controls at the top

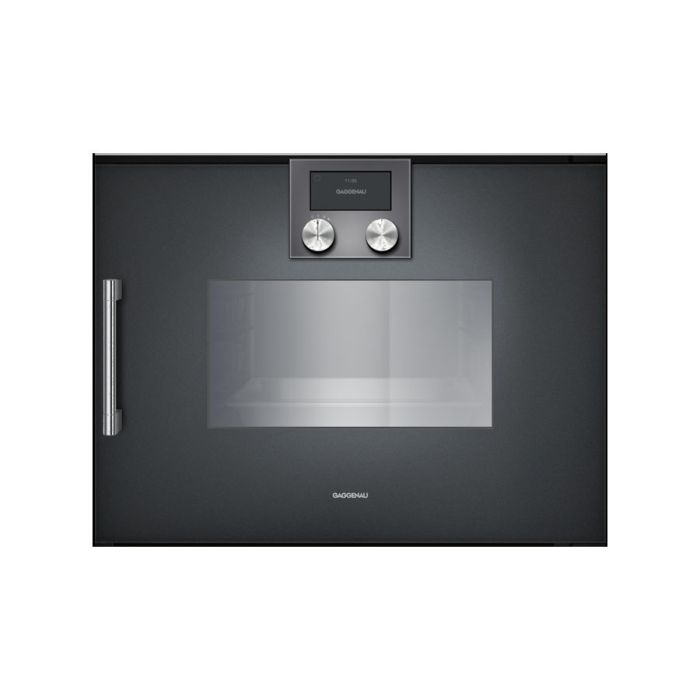

Name: Gaggenau BSP 220 100 Built-In Steam Oven 200 Series (60cm 45L) 嵌入式電蒸爐 Gaggenau BSP 220 100
SKU: BSP220100
Availability: InStock

BSP221100

Additional information

Heating methods

Handling

Features

Removable 1.3 litre water tank.
Water level warning.
Actual temperature display.
Timer functions: cooking time, cooking time end, timer, stopwatch, long-term timer.
Electronic boiling point detection.
60 W halogen light on the side.
Hygienic stainless steel cooking interior.
4 tray levels.

Safety

Cleaning

Planning notes

Door hinge not reversible.
No other electrical appliances should be installed above the BS.
The door panel surface of the appliance extends 21 mm from the furniture cavity.
The outer edge of the door handle extends 72 mm from the furniture cavity.
Necessary lateral gap between appliance door and furniture panel of min. 5 mm.
Consider the overhang, incl. the door handle, when planning to open drawers next to the appliance.
When planning a corner solution, pay attention to the 110° door opening angle.
To achieve the 550 mm installation depth, the connection cable needs to follow the slanted edge on the corner of the housing.
The mains socket needs to be planned outside of the built-in niche.

Connection
